Tower Cran Troleynering mexanizmi 4JXF4

Savat qo'shish

Baham ko'ring:

To'lov turi:	L/C,T/T
Inkoerm:	FOB,CFR,CIF,EXW
Min. Buyurtma:	1 Set/Sets

Mr. Rick Zhao

Endi murojaat qiling

Asosiy ma'lumot

Model raqami: 4JXF4

Holat: Yangi

Qo'llaniladigan Soha: Qurilish ishlari

Kafolatdan Tashqari Xizmat: Onlayn qo'llab-quvvatlash

Mahalliy Xizmatlarni Qayerdan Ajratish Kerak (chet Elda Xizmat Ko'rsatadigan Davlatlar Mavjud): BAA

Video Fabrikasi Inspektsiyasi: Taqdim etilgan

Kelib Chiqishi: Xitoy

Kafolat Muddati: 1 yil

Xizmat Ko'rsatish Tizimi: Onlayn qo'llab-quvvatlash

Single Rope Rated Tension: 4500N

Trolleying Range: 60m

Rated Power Of The Motor: 4kW

Trolleying Speed: 0-58m/min

Nominal Diameter Of Wirerope: Φ7.7

Reducer Ratio: 29.4

Mechanism Weight: 270kg

Additional Info

Paket: Standart qadoqlash

Hosildorlik: 1000 Sets per month

Tashish: Ocean,Land

Kelib chiqishi: Xitoy

Ta'minot qobiliyati: 1000 Sets per month

HS kodi: 8431499900

Port: Chinese Sea Port

To'lov turi: L/C,T/T

Inkoerm: FOB,CFR,CIF,EXW

Mahsulot tavsifi

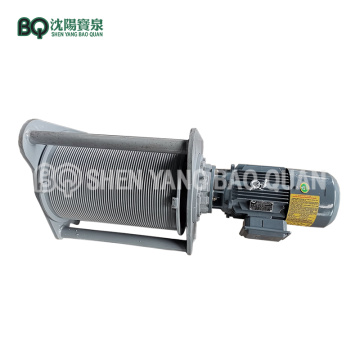

Minora kran qismlari: 4JXF4 trolleyalik mexanizmi

Tower Cranda uchta mexanizm mavjud, bu zaryadlash mexanizmi, trolleering mexanizmi va torizatsiya mexanizmi.

4JFF4 trolylash mexanizmi 8 tonna va 10 tonna minorali kran uchun ishlatiladi. JXF trolleyalik mexanizmi o'zgaruvchan chastota mexanizmi , yarim yashirilgan sayyora, tang, ustun, pirog, nol tezlikdagi tormozlash, yumshoq va tezlikni ishga tushirish va tezlikni oshirish. o'zgartirish va boshqalar.

Sizning tanlovingiz uchun trolyering mexanizmining dahshatli modellari

Model	Rated Power of the Motor (kW)	Rated Stalling Torque of Torque Motor (N.m)	Single Rope Rated Tension (N)	Trolleying Speed (m/min)	Trolleying Range (m)	Nominal Diameter of Wirerope (mm)	Tower Crane Rated Lifting Weight (t)
95JXL2	/	95	4500	0-58	60	Φ7.7	8,10
4JXF4	4	/	4500	0-58	60	Φ7.7	8,10
120JXL	/	120	5400	0-63	73	Φ8	12
6JXF5	5.5	/	5400	0-63	73	Φ8	12
185JXL	/	185	7100	0-65	75	Φ9	16,18
7.5JXF8	7.5	/	7100	0-65	75	Φ9	16,18
11JXF10	11	/	10000	0-65	83	Φ10	20,24
15JXF16	15	/	16000	0-62	85	Φ13	25,32
18JXF25	18.5	/	25000	0-32	80	Φ13	40,50
24JXF33	24	/	33000	0-25	80	Φ16	64
