| To'lov turi: | L/C,T/T |
| Inkoerm: | FOB,CFR,CIF,EXW,FCA |
| Min. Buyurtma: | 1 Set/Sets |
| Tashish: | Ocean,Land,Air |
| Port: | Chinese sea port |
Share:
Model raqami: M900B
Tovar: Bq
Origin: Xitoy
Characteristic: Tower Crane
Applicable Industry: Manufacturing Plant, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Uae
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Uae
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Bearing, Gearbox, Motor, Gear, Pump
Holat: New
Rated Load: 50 Ton
Maximum Lifting Height: Other
Place Of Origin: China
Warranty Period: 1 Year
Unique Selling Point: High Operating Efficiency

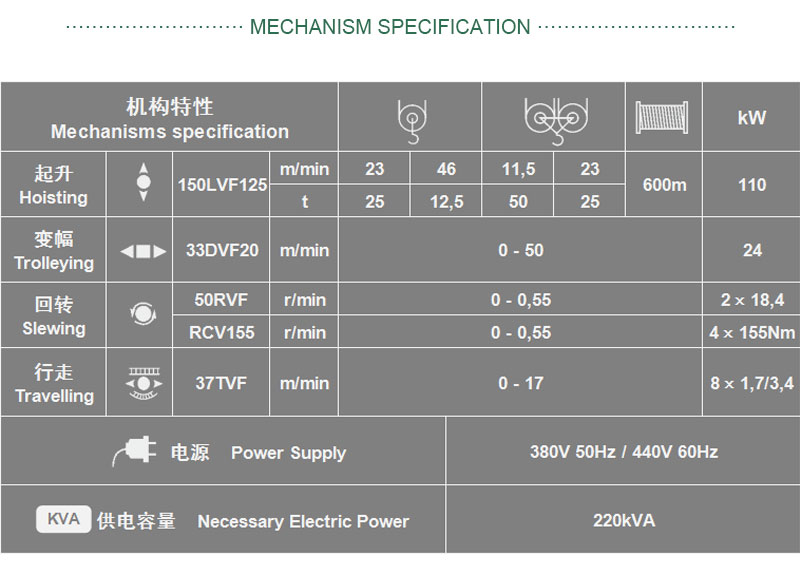

Hoisting Mechanism: 150lvf125 110kw
Trolleying Mechanism: 33dvf20 24kw
Slewing Mechanism: 50rvf 2ⅹ18.4
Working Range: 70m
Tip Load: 9.1t
Free Standing Height: 90.8m
Mast Section: 4.0m*4.0m*5.78m
Moving Type: Fixed
Steel Material: Q345B
Power: 220KVA
| Sotish birliklari | : | Set/Sets |
| Paket turi | : | konteynerlar |
The file is encrypted. Please fill in the following information to continue accessing it

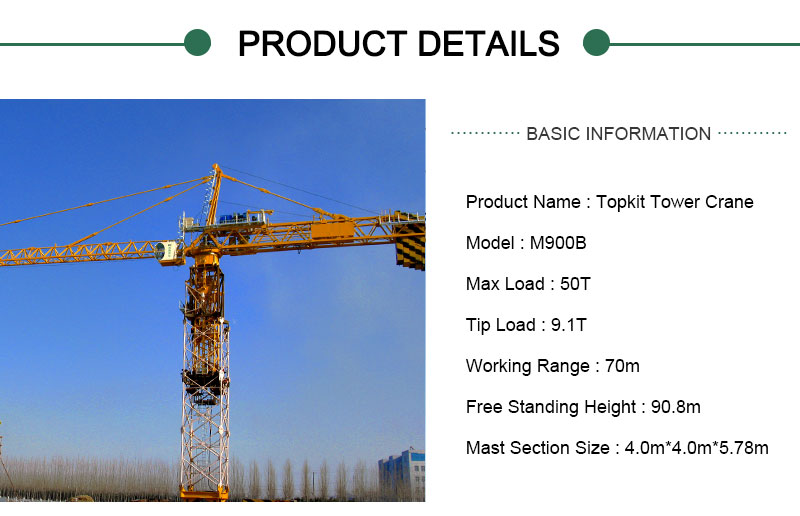

BQ M900B Topkit minorasi kran
Tower Craning Craning M900B
M900B WALL Tower kranlari yangi dizayn, ilg'or mexanizm va ishonchli ishlashi bilan yuqori turadi va sizga uchta turga ega bo'lishi mumkin: sayohat turi, statsionar va ichkarisida. Kranning maksimal. Ishlaydigan diapazonda maksimal yuk ko'tarish hajmi 25t. Mijozlar minora kranlari haqidagi yuklarni, trollilayer va chashka mexanizmi bo'yicha tez chastotali konverentatsiyani o'zgartirish texnologiyasini tanlashlari mumkin.
BQ minorasi Cran Model: GhT5516-6 (MC110), GhT5015-10 (H2515-10) GhT6024-10 (MC205) , GHT6520-10 (MC235) GhT7032-12 (MC310K12), GhT7027-16 (MC320K16), M900B va boshqalar)
※ Yassi yuqori minora kran va luffing minorasi kranlari ham taqdim etiladi, qo'shimcha modellar uchun biz bilan bog'lanish uchun xush kelibsiz.
